600-2810 System:
  • Features
  • Block Diagram
  • Specs
  • Photos
  • Support
  • Overview

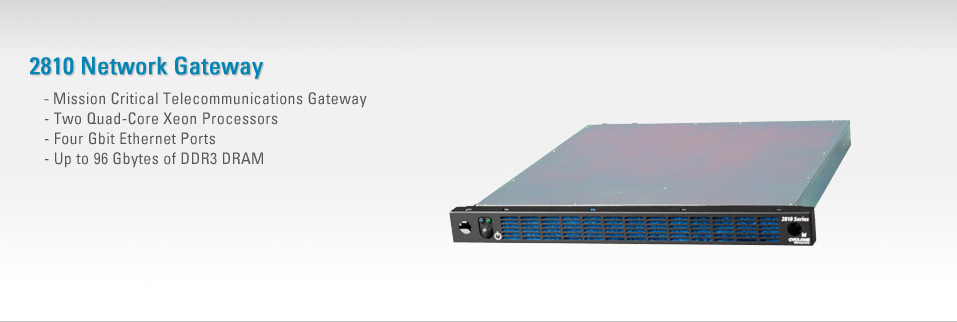

    Cyclone Microsystems’ 2810 Communications Gateways provide mission-critical computing capability to global wireless and wire-line communications providers. As a core component of our customer’s service delivery and revenue logging infrastructure, load sharing clusters of 2810s provide continuous, high availability operation with no single point of failure.

    Built to stringent NEBS Level III Network Equipment standards and deployed in 170 installations worldwide, Cyclone Microsystems Communications Gateways have helped provide 600 system years of continuous operation without a single service-effecting outage.

  • 600-28100 Block Diagram

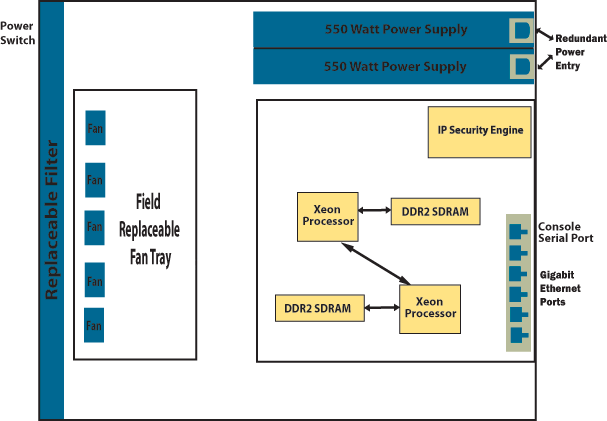

    600-2810 Block Diagram

  • Specifications
    • Processor:
      • One or Two Quad Core Xeon Processors (2 GHz)
    • Available IP Security:
      • Hardware Encryption and Decryption Accelerator
    • Memory:
      • Up to 96 Gbytes of DDR3 DRAM
      • 8 GByte Boot Flash Drive
    • I/O Ports:
      • Four Gbit Ethernet Ports
      • Console Serial Port
      • PCIe Expansion Slot
      • Four USB 2.0 Ports
    • Environmental:
      • Temperature, Fan, and Power Supply Monitoring
    • Redundancy:
      • Hot-Swap AC or DC Power Supplies
      • Field Replaceable, N+1 Fan Configuration
    • Certifications:
      • NEBS Level III, CE, RoHS, Anatel (Brazil)
