  • Description

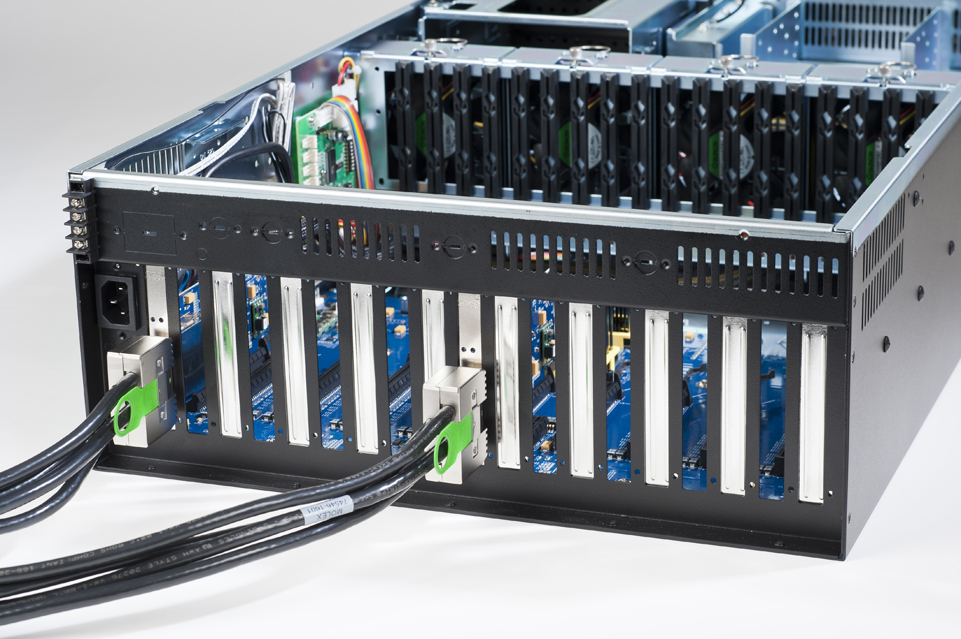

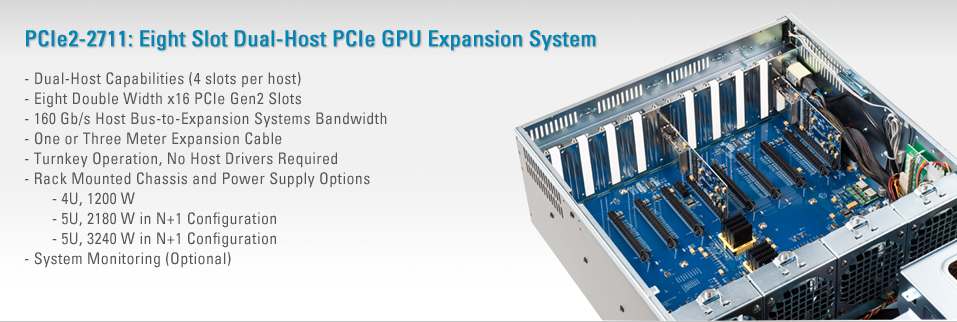

    Cyclone Microsystems' PCIe2-2711 Dual-Host, Eight Slot PCI Express GPU Expansion System allows system developers to expand two host PCI Express Gen2 slot to eight additional PCI Express Gen2 Slots via a Gen2 x16 (80 Gb/s) PCI Express Expansion cable. Alternatively, the two cables can be connected to separate host PCs, providing four x16 PCIe expansion slots per host PC. With extensive processing power now available on board level GPUs, the PCIe2-2711 supports the integration of up to eight double-width PCIe Gen2 GPU boards like NVidia's Tesla C2050/C2070 GPU Computing Engine.

    The PCIe2-2711 Eight Slot PCIe Gen2 GPU Express Expansion System is a turnkey system which includes a PCIe2-426 Host Bus to Expansion Cable Adapter, two x16 expansion cablse and the PCIe2-460 eight slot expansion backplane mounted in an industrial 19-inch chassis. The system supports  expansion cable lengths of either one or three meters.

    The eight x16 PCIe slots are double-width spacing, providing ample room for eight full length, double-wide PCIe cards such as the latest generation of GPUs. Ample power for multiple GPUs is provided by either 3240W or 2180W N+1 redundant supplies housed in a 5U chassis. For lower-power requirements, a standard 1200W power supply option is available in a 4U chassis. All power supply configurations provide eight 6+2 PCIe power connectors. The 5U chassis provides an additional eight 6-pin PCIe power connectors to meet the additional external power requirements of PCIe Gen2 GPUs and graphics cards.

    All Cyclone Microsystems' expansion systems are host processor, host operating system, and computer manufacturer agnostic. The sole determination of compatibility is the availability of two x16 slot (either Gen1 or Gen 2) and host computer’s BIOS’s capability to enumerate a large quantity of bridged bus segments. Our Expansion  System's PCIeG2 switch appears as bridged bus segments to the host BIOS.

    The Expansion system is optionally supported by an Intelligent Expansion Chassis Monitor to report temperature, fan speed and power supply parameters via HTTP or SNMP.

    Why use a PCI Express Expansion System?

  • PCIe2-426: PCIe Gen 2 x16 Host Bus to Expansion Cable Adapter

    • PCI Express x16 Host Interface
    • PCI Express Repeaters to x16 Cable
    • PCI Express Low Profile Card Format
    • Host Processor and Operating Systems Agnostic



    PCIe2-460/436: Eight-Slot PCI Express Expansion Backplane and Cable Adapter

    • Two x16 Gen2 Upstream Ports (80 Gb/s)
    • Eight x16 PCIe Gen2 Slots
    • ATX and 8 Pin +12V PC Power Connectors
    • RoHs Compliant
    • Regulatory Compliance: UL Safety, FCC, CE Regulatory Certifications (Pending)

    600-R2030 - 5U 19 Inch Rack Mount Chassis

    • 3240 or 2180 Watt N+1 Redundant Power Supply
    • 20 Full Length PCI Express Slots
    • Four Hot Swappable 90mm Fans (77 CFM Each)
    • Eight 5.25" and One 3.5" Internal Drive Bays
    • Dimensions: 19" x 8.75" x 27"
    • Weight: 77 lbs. Weight
    • Locking Drive Bay Door

    600-R2051 - 19 Inch Rack Mount Enclosure

    • 1200 W power Supply
    • Four Hot Swappable 90mm Fans (77 CFM Each)
    • Three 5.25" and One 3.5" Internal Drive Bays
    • 19" x 7" x 27"
    • 50 lbs Weight
    • Locking Drive Bay Door
  • PCIe2-2711 Block Diagram

    PCIe2-2711 Block Diagram
