Features

  • Intel 80321 XScale Microarchitecture
    • CPU Core Speed of 600 MHz
    • 32 Kbyte Instruction and Data Caches
  • Intel 82546 Dual Gigabit Ethernet Controller
    • One 1000BaseTx Port on Front Panel
    • One 1000BaseTx Port on Top of Board
  • Up to 1 GB of 200 MHz DDR SDRAM
  • Four Mbytes of Flash ROM
  • PCI-X Internal Bus at 100 MHz
  • PCI-X Bus Interface
    • 133 MHz/ 64 bit
    • 3.3 V Signaling
  • Serial Console Port
  • Software Support
  • PCI-739 PDF Data Sheet

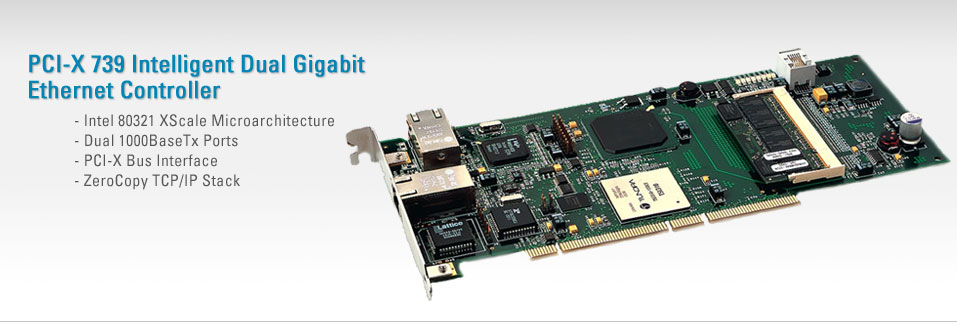

The PCI-739 is an Intelligent Gigabit Ethernet Controller that is used to assist the host processor with LAN processing in embedded and real time systems. The PCI-739's 80321 XScale architecture, coupled with a fast memory subsystem and PCI-X busses and an efficient zero copy TCP/IP stack, rapidly processes TCP/IP, time stamping, or security functions. The PCI-739 is applied in demanding embedded LAN applications including seismic exploration, medical imaging and video-on-demand.

Technical Specifications

Processor
  Microprocessor: Intel XScale 80321 at 600 MHz
  On-chip Cache (I/D): 32 Kbyte, 32 way, set associative

Memory
  Memory Capacity: 128 Mbytes, 256 Mbytes, 512 Mbytes, or 1 Gbyte
  Architecture: Synchronous Double Data Rate (DDR SDRAM) with optional ECC
  Performance: 200 MHz
  Flash: 4 Mybtes of Sector Programmable Memory

PCI Interface
  Primary PCI Interface: PCI 2.2 (Max 64 bit/133 MHz) 3.3V signaling
  Secondary PCI Interface: PCI-X (Max 64 bit, 100 MHz)

Asynchronous Serial Port
  Controller: 16C550 UART
  Speed: 300 to 115,200 bps
  Connector: RJ-11, on top edge of board

Ethernet Interface
  Controller: 82546GC Dual Gigabit Ethernet Controller with Integrated PHY
  Interface Speed: 10/100/1000Base-T Auto Negotiable
  Connectors: RJ-45, CAT 5 UTP on top edge of board
  LEDs: Activity and Link status LEDs on top edge of board

Miscellaneous
  Two Temperature Sensors
