Features

  • Intel 80321 XScale Microarchitecture
    • 600 MHz
    • 32 Kbyte Instruction and Data Caches
    • Integrated XOR Engine
  • Gigabit Ethernet Port on Top of Board
  • Up to 1 GB of 200 MHz DDR SDRAM with ECC
  • Four Mbytes of Sector Programmable Flash ROM
  • PCI-X Internal Bus at 100 MHz
  • PCI-X Bus Interface
    • 133 MHz/ 64 bit
    • 3.3 V Signaling
  • Serial Console Port
  • Software Support
  • PCI-738 PDF Data Sheet

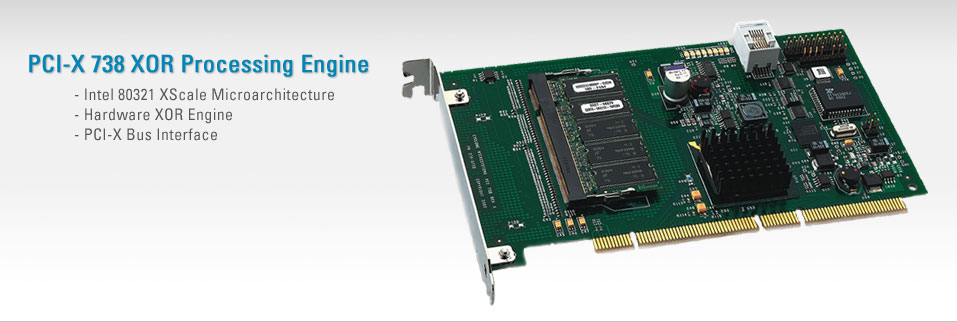

 PCI-X 738

PCI-X 738



The PCI-738 is an XOR Processing Engine specifically targeted at embedded systems that require high throughput of parity processing to insure data reliability. The PCI-738 features the 80321 XScale architecture with integral hardware XOR processing, a fast memory subsystem, and the PCI-X bus. The PCI-738 is applied in demanding embedded applications requiring a high level of data integrity.

The board is supported by the Breeze Development Environment VxWorks, ZeroCopy TCP, TimeSys Linux and VxWorks 5.4/Tornado 2.2. These four offerings cover a variety of real time project requirements from single embedded code to complex real time systems. Host drivers for Windows XP are also available.

Technical Specifications

Processor
  Microprocessor: Intel XScale 80321 at 600 MHz
  On-chip Cache (I/D): 32 Kbyte, 32 way, set associative

Memory
  Memory Capacity: 128 Mbytes, 256 Mbytes, 512 Mbytes, or 1 Gbyte
  Architecture: Synchronous Double Data Rate (DDR SDRAM) with optional ECC
  Performance: 200 MHz
  Flash: 4 Mybtes

PCI Interface
  PCI 2.2 (64 bit, 66 MHz)
  3.3 V Signaling



Asynchronous Serial Port
  Controller: 16C550 UART
  Speed: 300 to 115,200 bps
  Connector: RJ-11, on top edge of board

Ethernet Interface
  Controller: 82546GC Dual Gigabit Ethernet Controller with Integrated PHY
  Interface Speed: 1000Base-T/100Base-T/ 10Base-T Auto Negotiable
  Connectors: RJ-45, CAT 5 UTP on top edge of board
  LEDs: Activity and Link status LEDs on top edge of board

Miscellaneous
  Two Temperature Sensors
