Features
- Six x8 PCIe Slots
- Eight x4 PCIe Slots
- Two PCI-X Slots (64 bits, 100 MHz)
- PICMG 1.3 SHB Slot for either:
- PICMG 13 System Host Board
- 20 Gb/s x8 PCIe Standard Cable Interface
- PICMG 1.3 Physical Format
- BTX and 8 Pin +12V PC Power Connectors
- RoHS Compliant
- Designed to meet UL Saftety, FCC, CE Regulatory Certifications
- PCIe-412/403 PDF Data Sheet
|

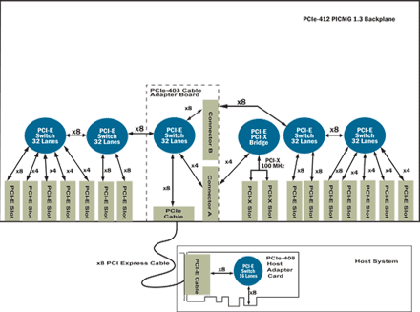

PCIe-412/403 Block Diagram |
|

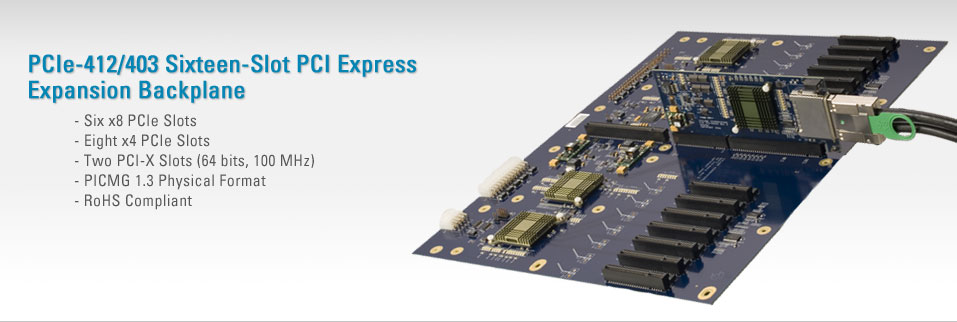

Cyclone Microsystem's PCIe-412-403 is a PCI Express Expansion Backplane offering system developers the capability of expanding a single host PCI Express slot to six x8 PCI Express slots, eight x4 PCI Express slots, and two PCI-X slots. With the use of non-blocking PCI Express Switches and a 20 Gb/s host cable link, slot limited PCI Express host computers can be used for I/O intensive embedded systems.
|
|
