PCIe-412
Call: 203.786.5536
E-mail: information@cyclonepcie.com


Click to download
the datasheet (PDF)

Features

  • Six x8 PCIe Slots
  • Eight x4 PCIe Slots
  • Two PCI-X Slots (64 bits, 100 MHz)
  • PICMG 1.3 SHB Slot for either:
    • PICMG 13 System Host Board
    • 20 Gb/s x8 PCIe Standard Cable Interface
  • PICMG 1.3 Physical Format
  • Maximum PCI Express Power to Each Slot
  • RoHS Compliant
  • Designed to meet UL Saftety, FCC, CE Regulatory Certifications
  • PCIe-412 PDF Data Sheet



PCIe-412 Block Diagram

PCIe-412 Block Diagram

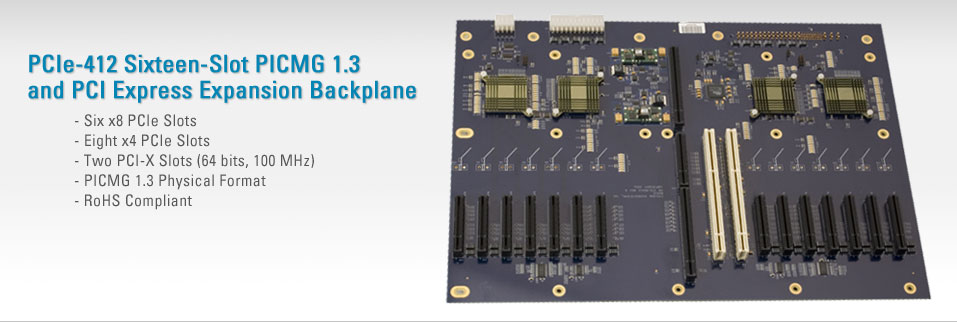

Cyclone Microsystem's PCIe-412 is a PCI Express Backplane that offers system developers a high-performance foundation for I/O intensive embedded systems. The PCIe-412 has a total of 16 slots: six x8 PCI Express slots, eight x4 PCI Express slots, and two PCI-X slots. The backplane architecture uses four 32-lane, non-blocking PCI Express Switches for the PCI Express Slots and a PCI-X bridge for the PCI-X slots.

The PCIe-412 Backplane can be applied one of two manners. With the PCIe-403 PCI Express Cable Adapter, a PCI Express Cable, and PCIe-408 PCI Express Host Bus Adapter, the PCI Express Expansion Backplane expands the I/O capability of slot-limited host computers via a 20 Gb/s PCI Express cable link. Alternatively, the PCIe-412 can be populated in with a PICMG 1.3 System Host Board (SHB). See related product and product configurations at end of data sheet.


While the PCIe-412 is designed to be compatible with all PICMG 1.3 System Host Boards, we have successfully completed compliance testing with Trenton Technologies' MCXT (Two Dual Core Xeon Processor) 506633-108-0G 2.33GHz (1333MHz/4MB) and the NLT SHB (Dual Xeon processors and the E7520 chipset), and NLI SHB (Xeon Processor and the E7520 chipset).


Related Products and Product Configuration
PCIe-412/403 - 16 Slot PCI Express Expansion Backplane:
  • PCIe-412 Sixteen-Slot PCI Express Backplane
  • PCIe-403 PICMG 1.3 SHB Slot to PCI Express Cable Adapter
2603 - PCIe-412 Sixteen-Slot PCI Express Expansion Kit:
  • PCIe-412 Sixteen-Slot PCI Express Backplane
  • PCIe-403 PICMG 1.3 SHB Slot to PCI Express Cable Adapter
  • PICMG 1.3 Rack Mount Chassis
2602 - PCIe-412 Mounted in PICMG 1.3 Chassis:
  • PCIe-412 Sixteen-Slot PCI Express Backplane
2703 - PCIe-412 Sixteen Slot PCI Express Expansion System:
  • PCIe-412 Sixteen-Slot PCI Express Backplane
  • PCIe-403 PICMG 1.3 SHB Slot to PCI Express Cable Adapter
  • PICMG 1.3 Rack Mount Chassis
  • PCI Express Expansion Cable (1 or 3 Meters)
  • PCIe-408 Host Bus Cable Adapter
