PMC-X 85
Call: 203.786.5536
E-mail: information@cyclonepcie.com


Click to download
the datasheet (PDF)

Features

  • Two Gigabit Ethernet Ports
    • RJ-45 on Face Panel for CAT-5 Cable
    • Transient Voltage Suppression
  • PMC Module Interface
    • PCI 2.2 (66MHz/64bit)
    • PCI-X (ANSI/VITA 39-2003) Compatible
    • Universal Signaling
  • Software Drivers
    • WindowsLinux
    • VxWorks
    • Zero Copy TCP
  • RoHS Compliant
  • PMC-X 85 Data Sheet



PMXX 85

PMXX 85

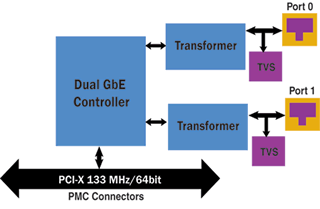

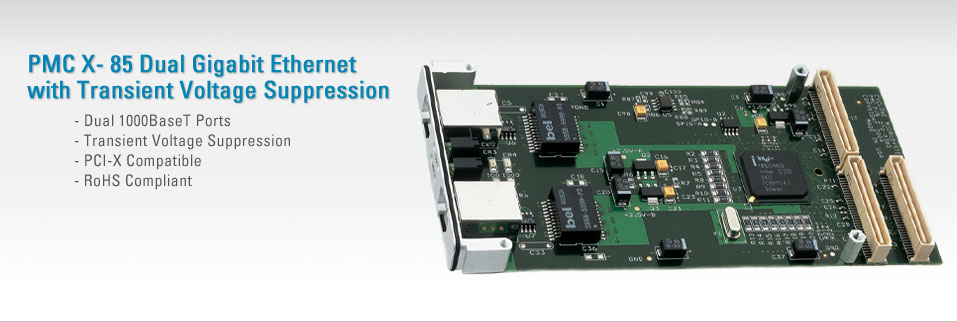

The PMC-X 85 Dual Gigabit Ethernet Module expands the I/O capabilities of Compact PCI boards with two 10/100/1000 BaseT ports. The PMC-X 85 supports PCI bus speeds up to 133 MHz/64bits (PCI-X).

The PMC-X 85 has transient voltage suppressors to protect the line interface from transients caused by electrostatic discharge, cable discharge events, lightning, and other induced voltage surges. The PMC-X 85 is designed for equipment that must meet IEC 61000-4-2 (ESD), IEC 61000-4- 4 (EFT) and IEC 61000-4-5 (Lightning) immunity standards.


Software drivers are available for TimeSys Linux, VxWorks with Zero Copy TCP/IP.
