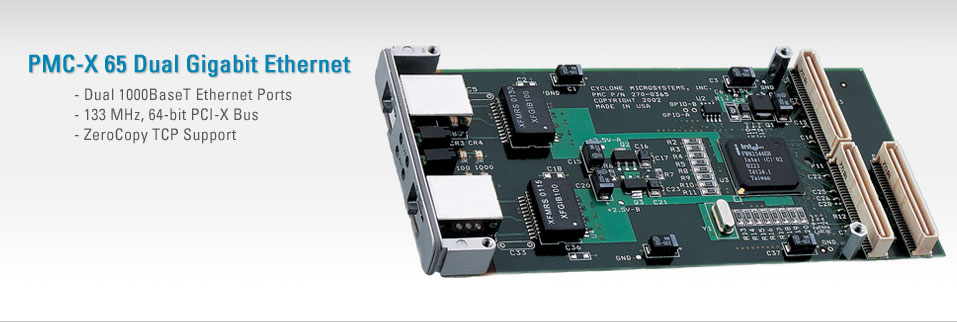

PMCX 65
Call: 203.786.5536
E-mail: information@cyclonepcie.com



Features

  • Dual 10/100/1000 BaseT Ethernet Ports
    • RJ-45 Connectors on the Front Panel
    • CAT-5 Cable
  • PCI-X Bus
    • 133 MHz
    • Universal Signaling
    • PCI Compliant
  • Software Support
    • Windows
    • ZeroCopy TCP Support
    • VxWorks
    • Linux 2.4







Cyclone's PMC Modules provides I/O expansion and flexibility by allowing customers to add a wide range of I/O interfaces to Cyclone's CompactPCI products. Cyclone's PCI and CompactPCI cards support one or two modules per board. Designers can mix and match standard and custom modules to meet unique I/O requirements.

The PMC Module is an IEEE standard (IEEE 1386). The standard uses the PCI bus as an electrical foundation, providing 32-and 64-bit transfers at 33 and 66 MHz clock speeds. The PMCX-65 supports PCI-X electrical interface at up to 133 MHz. The PMCX-65 is backward compatible with the slower PCI speeds.
