Features

CPCI 825

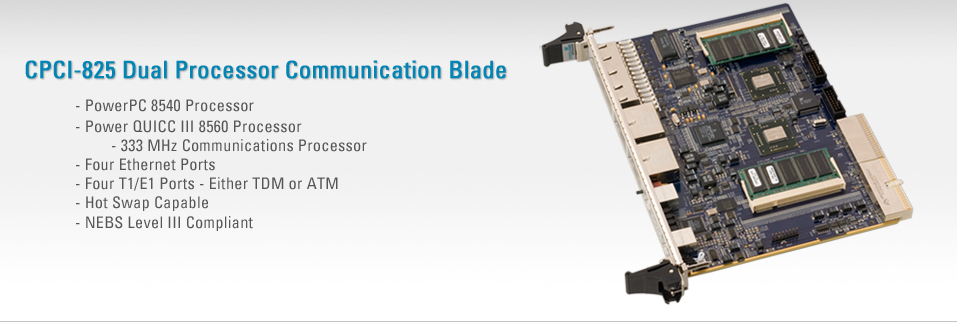

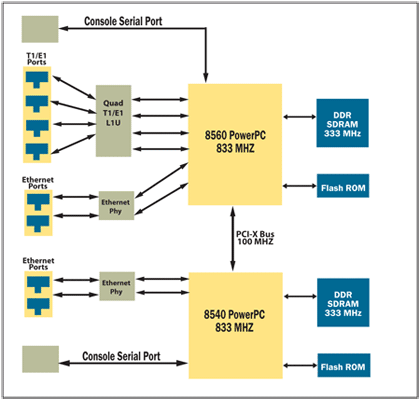

The CPCI-825 is a CompactPCI form factor, blade-style communications processor designed for demanding telecommunications and protocol processing applications. THe Board boasts a two processor solution, PowerPC 8540 Processor and a Power QUICC III Communications. The Blade Provides four Gigabit Ethernet ports (two to each processor) and four T1/E1 interfaces. The T1/E1 interfaces can be run in TDM (Time Division Multiplex) mode or ATM mode.

The CPCI-825 is supported by Cyclone's Breeze Development Environment, an LSP for Linux 2.6, and a BSP for Wind River System's VxWorks/Tornado.

The CPCI-825 has been certified to the demanding NEBs Level 3 requirements when installed in Cyclone Microsystem's the three-slot, dual AC powered Compact PCI 600-2014 chassis or the three-slot, dual DC powered, Compact PCI 600-2015 chassis.
