Features

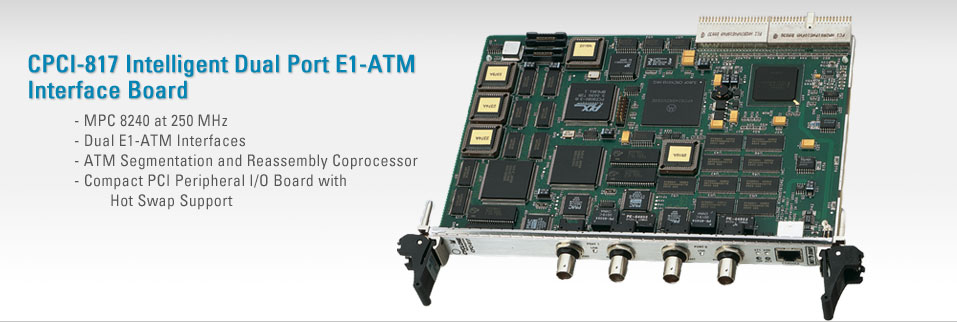

CPCI 817

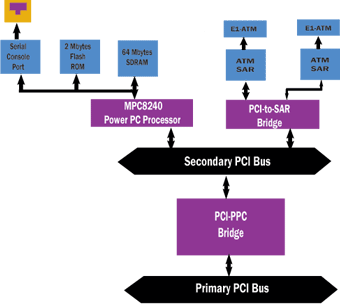

The CPCI-817 is a Intelligent Dual E1-ATM Interface board that is applied in advanced telecommunications systems. The CPCI-817 supports Intelligent I/O processing on E1-ATM traffic by performing ATM cell segmentation and reassembly with the additional available intelligence to perform I/O processing on the data stream. This processing capability removes the I/O processing burden from the host processor.

Both the Breeze Development Environment and pSOS+ are supported.

The CPCI-817 is actively deployed in Cyclone's 2400 Series of Front End Processors, a system level platform that is heavily used in SS-7 and AIN telecommunications applications.
