CPCI-816

Home > Products > Legacy Products > CPCI > CPCI-816
Call: 203.786.5536
E-mail: information@cyclonepcie.com

Features

  • 8260 PowerQUICC II Communications Processor at 200 MHz
  • Four E1 Interfaces
    • Dual 75 Ohm BNC Connectors per Interface
  • 64 Mbytes SDRAM
  • Compact PCI Peripheral Interface
    • PICMG 2.1
    • 33 MHz/64 bit
    • Hot Swap Support
  • Two Mbytes FLASH ROM
  • Serial Console Port
  • Operating System Support
  • Temperature Sensors
  • NEBS Level III Certified

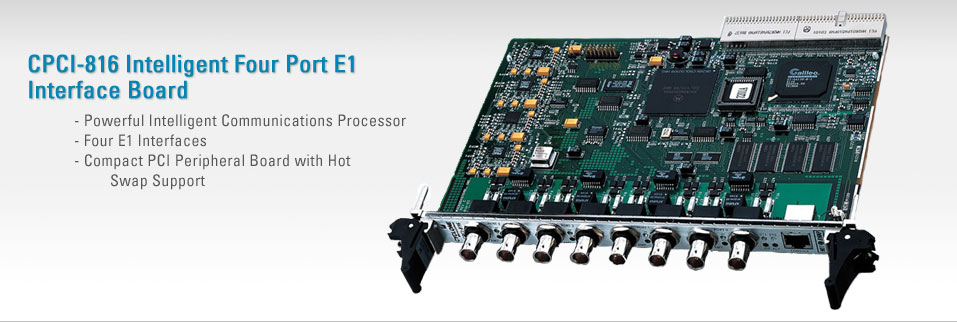

 CPCI 816

CPCI 816

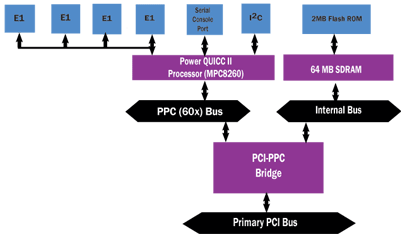

The CPCI-816 is a Intelligent Four Port E1 Interface board that is applied in advanced telecommunications systems. The CPCI-816's 8260 Communications Processor handles E1 TDM traffic processing so that the system host processor can focus on application level processing.

The CPCI-816 is actively deployed in Cyclone's 2400 Series of Front End Processors, a system level platform that is heavily used in SS-7 and AIN telecommunications applications.
